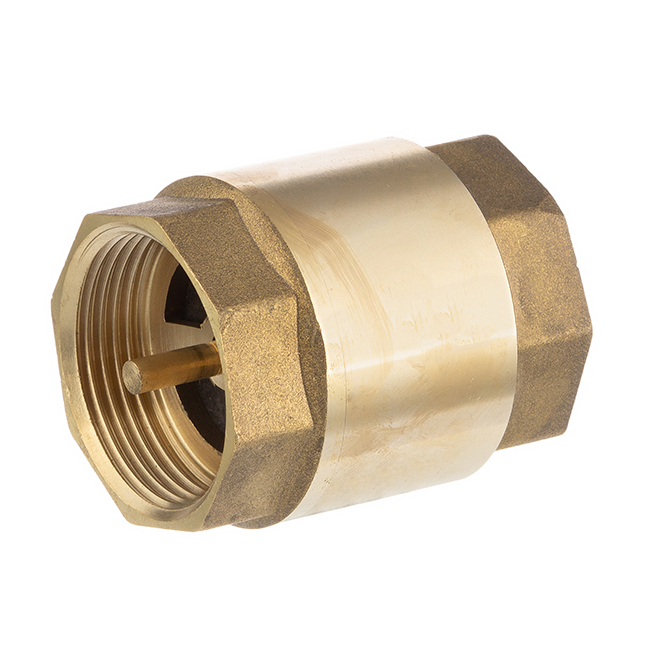

Brass check valve type "York" with brass lock, female thread

SKU: MAME11
Auswahl Steuerzone / Lieferland
from
4,15 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
d
G
L
t
PN
Price
Quantity
MAME11.000.020
1/2"
33
17
1/2" (20,95mm)
46
11
20
4,15 €*
MAME11.000.025
3/4"
42,5
22
3/4" (26,44mm)
56
11
20
5,65 €*
pc.:
MAME11.000.032
1"
46,5
28
1" (33,25mm)
58,5
13
20
8,77 €*
pc.:
MAME11.000.040
1 1/4"
56,5
35
1 1/4" (41,91mm)
62,5
12
20
12,59 €*
pc.:
MAME11.000.050
1 1/2"
65
40
1 1/2" (47,81mm)
70,5
14
20
18,22 €*
pc.:
MAME11.000.063
2"
82
52
2" (59,61mm)
81
18
20
20,38 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass Check Valve Type YORK Brass Closure, 2x Female Thread

Connection:
2x Female Thread DIN 259
Material:
Brass CW61N (suitable for drinking water pipes)
Thread:
BSP Pipe Thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with hemp, sealing paste or similar.
Application:
suitable for cold and hot water
Temperature:
0°C to 100°C
Working pressure (PN):
PN 20 at 20°C medium water
Color:
Brass
Check Valve
No.
Part
Material
1
Body
Brass
2
Counterpart
Brass
3-1
Core
Brass
4
Seal
NBR
3-2
Disc
Brass
5
Spring
V2A

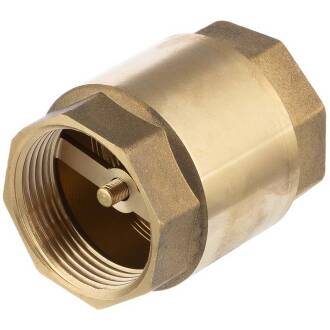

Check Valve Type YORK with Brass Closure

The professional version of the YORK type check valve has the closure carrier and guide pin made of brass.

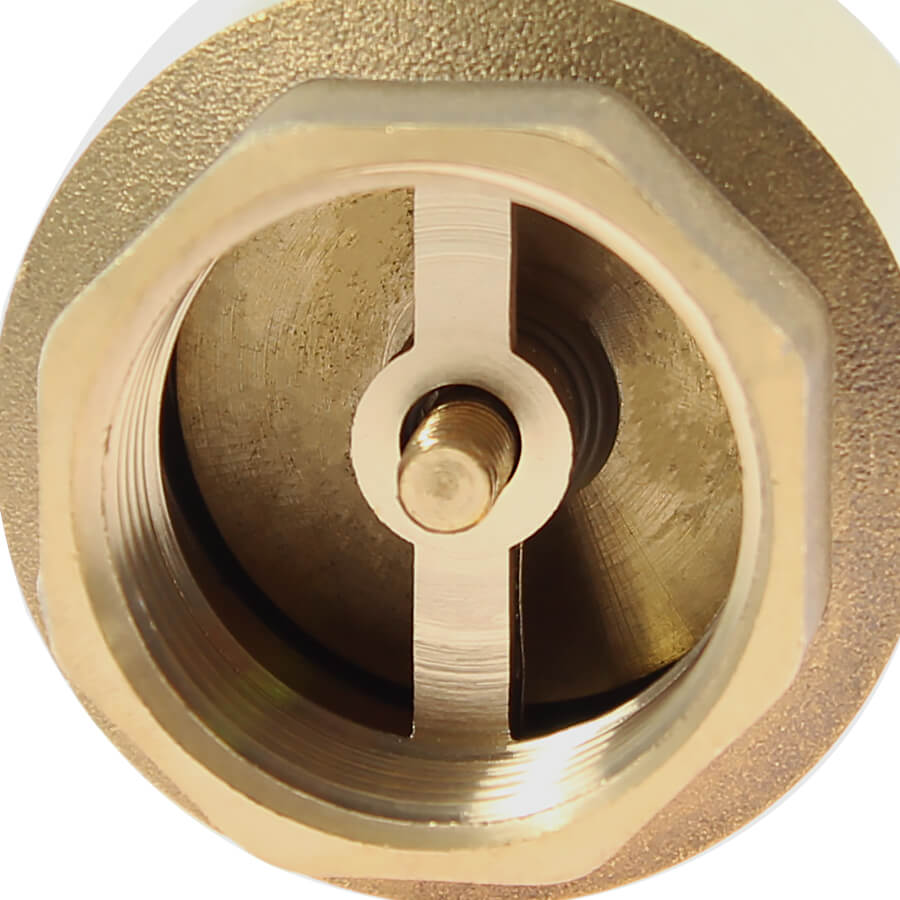

Check Valve Type YORK Detail Brass


DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Add-on Brass HTC
DOWNLOAD The thread designation - or why 1" is not exactly 25.4mm
