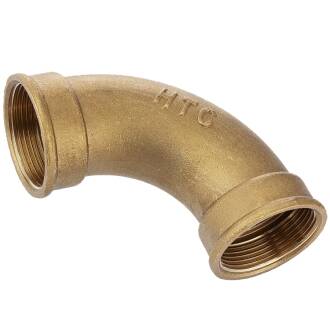

Brass female threaded bend 90°

SKU: MF0404
Auswahl Steuerzone / Lieferland
Price on request
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

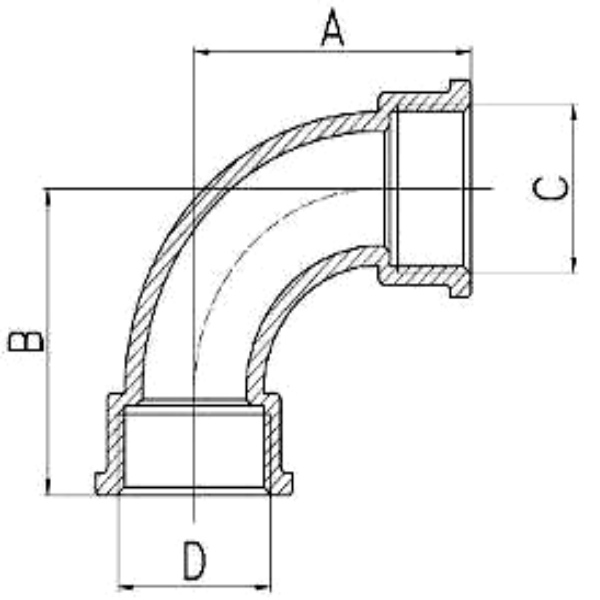

Item no.
Variation
A
B
C
D
Price
Quantity
MF0404.000.020
1/2"
42
42
1/2" (20,96mm)
1/2" (20,96mm)
3,32 €*
pc:
MF0404.000.025
3/4"
47
47
3/4" (26,44mm)
3/4" (26,44mm)
4,83 €*
pc:
MF0404.000.032
1"
61
61
1" (33,25mm)
1" (33,25mm)
7,95 €*
pc:
MF0404.000.040
1 1/4"
72
72
1 1/4" (41,91mm)
1 1/4" (41,91mm)
13,26 €*
pc:
MF0404.000.050
1 1/2"
83
83
1 1/2" (47,80mm)
1 1/2" (47,80mm)
18,43 €*
pc:
MF0404.000.063
2"
99
99
2" (59,61mm)
2" (59,61mm)
30,42 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass elbow 90°, 2-way female thread

Connection:
2-way female thread
Material:
Brass CW61N (can be used for drinking water pipes)
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to 150°C
Working pressure (PN):
max. 16 bar at 20°C medium water
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm

Brass elbow 2-fold female thread

The brass elbows designed for the sanitary and heating sector can also be found in plant construction, industry or in high-quality irrigation systems. The brass elbow 2-fold female thread is made of a zinc-copper alloy and is equally suitable for hot and cold water. These brass fittings tolerate additives such as antifreeze or water-glycol mixtures without any problems. Buy high-quality brass fittings in your fittings store at PVC-Welt.de

The brass bend 2 inch 90 Gard DN 50 is ideal for extending or converting water pipes, as the flow of water is slowed down much less than with a brass elbow, for example, due to the shape of the bend.

The 1 inch 90 degree DN 25 brass elbow is ideal for garden installations, as many systems are designed for 1 inch. The metric conversion of 1 inch corresponds to approx. 33.25 mm, so you can easily estimate whether your system is this size.

A size unit smaller than 0.75 inch or 3/4 inch is also very common in irrigation or in your domestic water system, but is also used for air conditioning and heating pipes.

For larger systems, the sizes 5/4 inch or 1 1/4" inch or 6/4 inch and 1 1/2" inch are also used. All brass elbows with 2 female threads are rustproof and corrosion-resistant, but cannot be used for salt water or water containing chlorine.

Metal threaded fittings have a BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, which is not self-sealing and is sealed with Teflon tape or hemp. This ensures a successful seal between the conical external thread and the parallel internal thread.


Product features - briefly summarized

  • Suitable for cold water and hot water
  • Working temperature max. PN 16 bar at 20° Celcius water
  • Stainless and corrosion-resistant
  • BSP pipe thread - the most common thread in sanitary technology
