Description

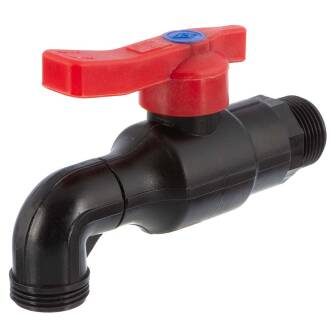

PP tap male thread x male thread PN16
Faucet made of black, UV-resistant PP with a unique body that ensures a high degree of safety and resistance to operating temperatures and pressures. It is ideal for the distribution of pressurized liquids and is tested to an operating pressure of PN16. The brass ball and pin are completely enclosed in their housing, preventing any stagnation or incrustation that would affect the quality of the drinking water.
The ball valve is connected to the circuit via the external thread and is equipped with an ergonomic PAGF lever handle and a threaded outlet. It is characterized by its impact resistance and ease of installation, making it suitable for outdoor applications in all civil and industrial water distribution systems, irrigation, horticulture and DIY.
Connection:
2-way male thread
Thread:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, seal with hemp, sealing paste or similar.
Temperature:
-15°C to +80°C
Working pressure (PN):
max. PN 16 at 20°C, medium water
Housing material:
PP polypropylene
Material ball and shaft:
Brass CW617N (can be used for drinking water pipes)
Seal:
PTFE (Teflon)
Color:
Black, handle red
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
